BUW6-300-CSE-G

BUW6-300-CSE-G

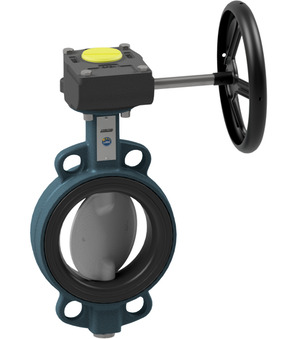

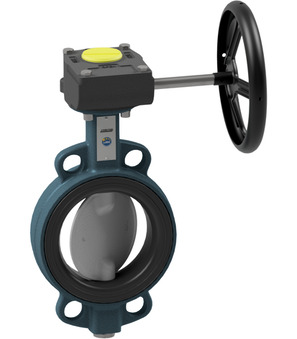

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 45.628 Kg
Short Itemnumber: BUW6300CSEG
https://www.stasto.eu/web/image/product.template/149399/image_1920?unique=24fee4a

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm

2.115,70 € 2115.7 EUR 2.115,70 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-300-CSE-B x 1.0
    Butterfly valve with bare shaft BUW6-300-CSE-B
    Butterfly valve with bare shaft Series BUW6-CSE-B; Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm
    Add to Cart
    GB02-10/22-02
    GB02-10/22-02 x 1.0
    GB02-10/22-02
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
    Add to Cart
