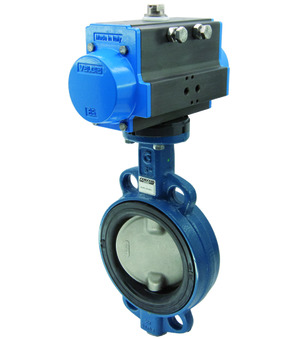

Butterfly valve with bare shaft BUW6-250-DSN-D22

Butterfly valve with bare shaft BUW6-250-DSN-D22

Butterfly valve with pneumatic actuator Series BUW6-DSN-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 250mm; Length 68mm; Actuator PAD140

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.9 Kg
Short Itemnumber: BUW6250DSND22
https://www.stasto.eu/web/image/product.template/182849/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BUW6-DSN-D2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 250mm; length 68mm; actuator PAD140

1.676,70 € 1676.7 EUR 1.676,70 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 250 mm
Length 68 mm
Flange PN10/16, ANSI150
pressure
Pressure range 0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BUW6-DSN-D2_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BUW6-DSN-D2_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSN-D2_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DSN-D2_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BUW6-DSN-D2_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DSN-D2_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BUW6-DSN-D2_SRLATIN.pdf
Download
BUW6-250-DSN-B x 1.0
Butterfly valve with bare shaft BUW6-250-DSN-B
Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 250mm; Length 68mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
Add to Cart
Pneumatic actuator PAD140
PAD140 x 1.0
Pneumatic actuator PAD140
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 451Nm
Add to Cart
