Butterfly valve with hand lever Series BUW6-DSE-L-3C Store

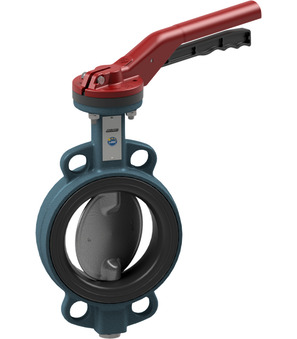

Butterfly valve with hand lever BUW6-200-DSE-L-3C

Name: Butterfly valve with hand lever BUW6-200-DSE-L-3C
Brand: STASTO
SKU: BUW6-200-DSE-L-3C
Price: 550.5 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-DSE-L-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.0 Kg
Short Itemnumber: BUW6200DSEL3C

butterfly valve with hand lever series BUW6-DSE-L-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 200mm; length 60mm

550,50 € 550.5 EUR 550,50 €

DN
- 200 mm
Length
- 60 mm
Pressure range
- -

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	200 mm
Length	60 mm

BUW6-200-DSE-B-3C x 1.0

Butterfly valve with bare shaft BUW6-200-DSE-B-3C

Butterfly valve with bare shaft Series BUW6-DSE-B-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 200mm; Length 60mm

Add to Cart
