Butterfly valve with manual gear box Series BUW4-DSD-G-DVGW Store

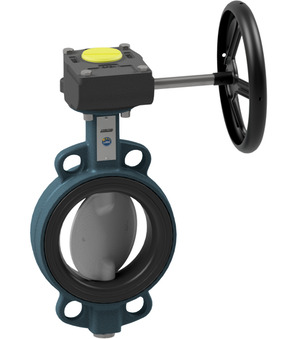

Butterfly valve with manual gear box BUW6-200-DSD-G-A

Name: Butterfly valve with manual gear box BUW6-200-DSD-G-A
Brand: STASTO
SKU: BUW6-200-DSD-G-A
Price: 920.1 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUW4-DSD-G-A-DVGW; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 200mm; Length 60mm; Pressure range 0…16bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 18.728 Kg
Short Itemnumber: BUW6200DSDGA

butterfly valve with manual gear box series BUW4-DSD-G-A-DVGW; ATEX II 2 G/D Ex h X; wafer type; DVGW-gas-approved; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR ; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; DN 200mm; length 60mm; pressure range 0…16bar

920,10 € 920.1 EUR 920,10 €

DN
- 200 mm
Length
- 60 mm
Design
- ATEX
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	200 mm
Length	60 mm
design
Design	ATEX
pressure
Pressure range	0...16 bar

BUW6-200-DSD-B-A x 1.0

Butterfly valve with bare shaft BUW6-200-DSD-B-A

Butterfly valve with bare shaft Series BUW6-DSD-B-A, BUW4-DSD-B-A; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 200mm; Length 60mm; Pressure range 0...16bar

Add to Cart
