Butterfly valve with hand lever Series BUW6-DS1P1-L Store

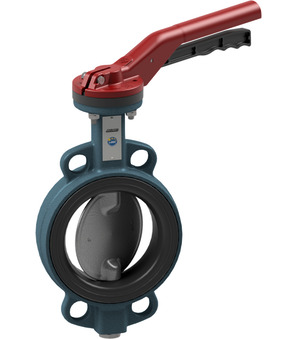

Butterfly valve with hand lever BUW6-200-DS1P1-L

Name: Butterfly valve with hand lever BUW6-200-DS1P1-L
Brand: STASTO
SKU: BUW6-200-DS1P1-L
Price: 1244.2 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-DS1P1-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408 Chenisil Coated ; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+90°C; Pressure range 0...16bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.0 Kg
Short Itemnumber: BUW6200DS1P1L

butterfly valve with hand lever series BUW6-DS1P1-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 Chenisil coated ; shaft AISI 430; liner polyurethane; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+90°C; pressure range 0...16bar; DN 200mm; length 60mm

1.244,20 € 1244.2 EUR 1.244,20 €

DN
- 200 mm
Length
- 60 mm

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

DN	200 mm
Length	60 mm

BUW6-200-DS1P1-B x 1.0

Butterfly valve with bare shaft BUW6-200-DS1P1-B

Butterfly valve with bare shaft Series BUW6-DS1P1-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408 Chenisil Coated; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+90°C; Pressure range 0...16bar; DN 200mm; Length 60mm
