STASTO Allgemeine Preisliste (EUR)

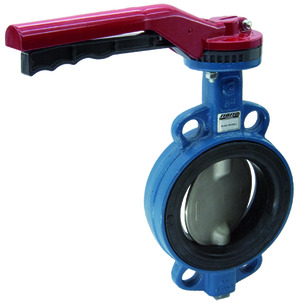

Butterfly valve with hand lever BUW6-200-DPN-L

Butterfly valve with hand lever BUW6-200-DPN-L

Butterfly valve with hand lever Series BUW6-DN-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Disc GGG40 Zinc plated; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.0 Kg
Short Itemnumber: BUW6200DPNL

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.eu/web/image/product.template/102964/image_1920?unique=fcc32fd

butterfly valve with hand lever series BUW6-DN-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; disc GGG40 zinc plated; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 200mm; length 60mm

373,60 € 373.6 EUR 373,60 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Disc

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 200 mm
Length 60 mm
Disc GGG40 Zinc plated
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 200 mm
Length 60 mm
Disc GGG40 Zinc plated

BUW6-200-DPN-L

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-200-DPN-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-200-DPN-B
Butterfly valve with bare shaft Series BUW6-DN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Disc GGG40 Zinc plated; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 200mm; Length 60mm
HLBU-200-A
HLBU-200-A x 1.0 Pcs
HLBU-200-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
