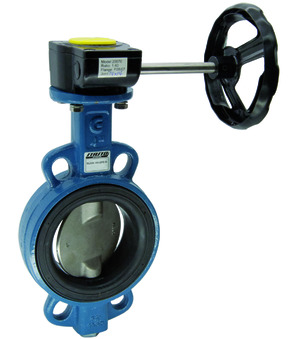

Butterfly valve with manual gear box BUW6-200-DPN-G

Butterfly valve with manual gear box BUW6-200-DPN-G

Butterfly valve with manual gear box Series BUW6-DPN-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated, Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 18.728 Kg
Short Itemnumber: BUW6200DPNG

Scope of delivery

butterfly valve with gear box
https://www.stasto.eu/web/image/product.template/102966/image_1920?unique=fcc32fd

butterfly valve with manual gear box series BUW6-DPN-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated, shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 200mm; length 60mm

591,20 € 591.2 EUR 591,20 €

Not Available For Sale

excl. tax
  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 200 mm
Length 60 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 200 mm
Length 60 mm

BUW6-200-DPN-G

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-200-DPN-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-200-DPN-B
Butterfly valve with bare shaft Series BUW6-DN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Disc GGG40 Zinc plated; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 200mm; Length 60mm
GB02-10/17-01
GB02-10/17-01 x 1.0 Pcs
GB02-10/17-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
