STASTO Allgemeine Preisliste (EUR)
  1. Products
  2. BUW6-150-DSN-CK2

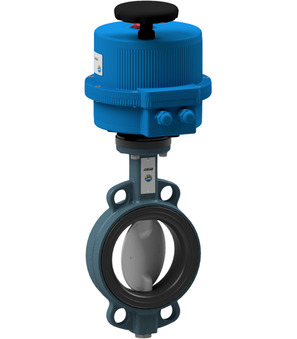

BUW6-150-DSN-CK2

BUW6-150-DSN-CK2

Butterfly valve With Electric control actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 27s; Voltage 24VAC/DC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20 mA

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.04 Kg
Short Itemnumber: BUW6150DSNCK2
https://www.stasto.eu/web/image/product.template/160725/image_1920?unique=24fee4a

butterfly valve with electric control actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 150mm; length 56mm; operating time 27s; voltage 24VAC/DC; with integrated positioner 4-20mA/0-10V; position feedback 4-20 mA

1.363,20 € 1363.2 EUR 1.363,20 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-150-DSN-B x 1.0
    Butterfly valve with bare shaft BUW6-150-DSN-B
    Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB190-L-P0S
    VB190-L-P0S x 1.0
    Electrical actuator VB190-L-P0S
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
    Add to Cart
