BUW6-125-DSV-0K2

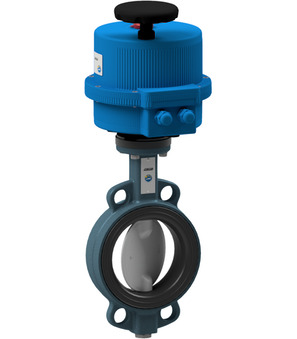

butterfly valve with electrical actuator series; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin:
Italy Made in Europe
Weight:
12.24 Kg
Short Itemnumber:
BUW6125DSV0K2
https://www.stasto.eu/web/image/product.template/233318/image_1920?unique=4c593f6

butterfly valve with electrical actuator series; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 24VAC/DC

1.230,20 € 1230.2 EUR 1.230,20 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability

Technical specifications

Pressure range 0...10bar
Brand STASTO
Pressure range 0...10bar
Brand STASTO
BUW6-125-DSV-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-125-DSV-B
Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 125mm; Length 56mm
VB110-L x 1.0 Pcs
Electrical actuator VB110-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
