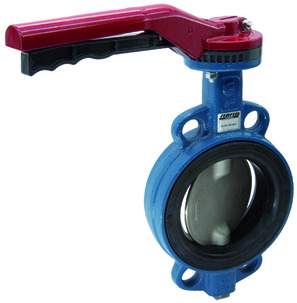

Butterfly valve with hand lever BUW6-125-DSN-L-A

Butterfly valve with hand lever BUW6-125-DSN-L-A

Butterfly valve with hand lever Series BUW6-DSN-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.85 Kg
Short Itemnumber: BUW6125DSNLA

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.eu/web/image/product.template/137220/image_1920?unique=d79ab69

butterfly valve with hand lever series BUW6-DSN-L; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 150mm; length 56mm

274,50 € 274.5 EUR 274,50 €

Not Available For Sale

excl. tax
  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 150 mm
Length 56 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 150 mm
Length 56 mm

BUW6-125-DSN-L-A

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-125-DSN-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-125-DSN-B
Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150
HLBU-125150-A
HLBU-125150-A x 1.0 Pcs
HLBU-125150-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 125;150mm
