BUW6-125-DSE-SR2

Name: BUW6-125-DSE-SR2
SKU: BUW6-125-DSE-SR2
Price: 1283.0 EUR
Availability: InStock

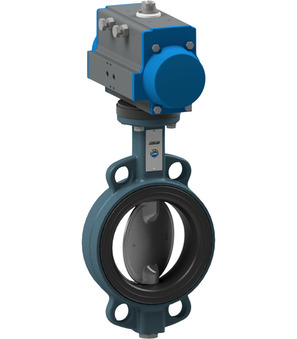

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 4…8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Actuator PAS1402

Intrastat No.: 84818085
Country of origin: Italy
Weight: 29.67 Kg
Short Itemnumber: BUW6125DSESR2

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 4…8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 125mm; length 56mm; actuator PAS1402

1.283,00 € 1283.0 EUR 1.283,00 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar

Spezifikationen
Spare Parts

Pressure range

0...10bar

BUW6-125-DSE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-125-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16/ANSI150

PAS1402 x 1.0 Pcs

Pneumatic actuator PAS1402

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 92Nm

APKTGB0051 x 1.0 Pcs
