Butterfly valve with hand lever Series BUW6-DN-L-A Store

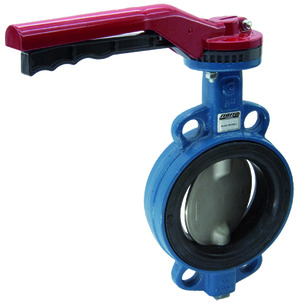

Butterfly valve with hand lever BUW6-125-DPN-L-A

Name: Butterfly valve with hand lever BUW6-125-DPN-L-A
Brand: STASTO
SKU: BUW6-125-DPN-L-A
Price: 204.4 EUR
Availability: InStock

Butterfly valve with hand lever Series BUW6-DN-L-A; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 125mm; Length 56mm; Disc GGG40 verzinkt

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.85 Kg
Short Itemnumber: BUW6125DPNLA

butterfly valve with hand lever series BUW6-DN-L-A; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; DN 125mm; length 56mm; disc GGG40 verzinkt

204,40 € 204.4 EUR 204,40 €

DN
- 125 mm
Length
- 56 mm
Design
- ATEX
Disc
- GGG40 Zinc plated

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	125 mm
Length	56 mm
design
Design	ATEX
materials
Disc	GGG40 Zinc plated

BUW6-125-DPN-L x 1.0

Butterfly valve with hand lever BUW6-125-DPN-L

Butterfly valve with hand lever Series BUW6-DN-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 125mm; Length 56mm; Disc GGG40 verzinkt
