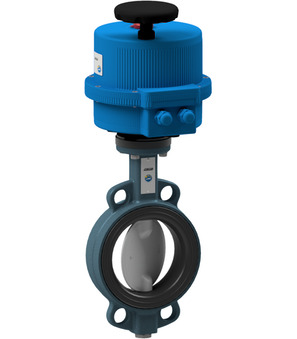

BUW6-125-DPE-CG2

BUW6-125-DPE-CG2

Butterfly valve with electrical actuator Series BUW6-DPE-C2; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Operating time 27s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20mA/0-10V

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.19 Kg
Short Itemnumber: BUW6125DPECG2
https://www.stasto.eu/web/image/product.template/134096/image_1920?unique=c096d6d

butterfly valve with electrical actuator series BUW6-DPE-C2; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc zinc plated ductile iron EN-GJS-400-15; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 100-240VAC; with integrated positioner 4-20mA/0-10V; position feedback 4-20mA/0-10V

1.216,40 € 1216.4 EUR 1.216,40 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-125-DPE-B x 1.0
    Butterfly valve with bare shaft BUW6-125-DPE-B
    Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Disc GGG40 verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB110-H-P0S
    VB110-H-P0S x 1.0
    Electrical actuator VB110-H-P0S
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
