BUW6-100-DSW-S22-A

Name: BUW6-100-DSW-S22-A
Brand: STASTO
SKU: BUW6-100-DSW-S22-A
Price: 920.5 EUR
Availability: InStock

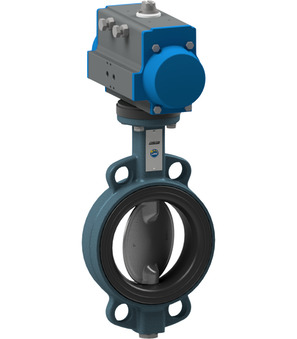

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM food-safe; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1155; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 17.03 Kg
Short Itemnumber: BUW6100DSWS22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM food-safe; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1155; ATEX zone 1 and 21

920,50 € 920.5 EUR 920,50 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW6-100-DSW-B x 1.0

Butterfly valve with bare shaft BUW6-100-DSW-B

Butterfly valve with bare shaft Series BUW1-DSW-B, BUW2-DSW-B, BUW6-DSW-B, BUWC-DSW-B, BUWV-DSW-B, BUWZ-DSW-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM White; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Flange PN10/16/ANSI150

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
