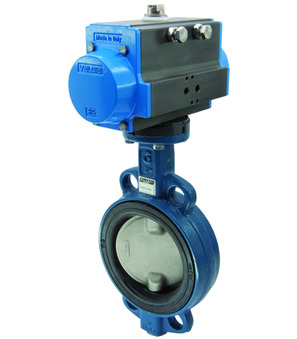

Butterfly valve with pneumatic actuator BUW6-100-DSE-S23-02

Name: Butterfly valve with pneumatic actuator BUW6-100-DSE-S23-02
SKU: BUW6-100-DSE-S23-02

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Special grease; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAS1405-B; Actuator mounted 90° twisted

Intrastat No.: 84818085
Country of origin: Italy

Weight: 22.48 Kg
Short Itemnumber: BUW6100DSES2302

butterfly valve with pneumatic actuator series BUW6-DSE-S2; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; Special grease; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAS1405-B; actuator mounted 90° twisted

On request

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...10 bar
DN	100 mm
Length	52 mm

Documents

Data sheets, drawings and CAD files

Pressure range	0...10 bar
DN	100 mm
Length	52 mm

BUW6-100-DSE-S23-02

Documents

1 Documents 7 Languages

Czech / Čeština

ZIP

Data Sheets

PDF
Datový list · uzavírací klapka s otočným pneumatickým pohonem série BUW6-DSE · CS
Data sheet 444 KB Updated 13/06/2026

View Download

German / Deutsch

ZIP

Data Sheets

PDF
Datenblatt · Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DSE · DE
Data sheet 441 KB Updated 13/06/2026

View Download

English

ZIP

Data Sheets

PDF
Data sheet · Butterfly valve with pneumatic actuator Series BUW6-DSE · EN
Data sheet 440 KB Updated 13/06/2026

View Download

Hungarian / Magyar

ZIP

Data Sheets

PDF
Adatlap · pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW6-DSE · HU
Data sheet 445 KB Updated 13/06/2026

View Download

Polish / Język polski

ZIP

Data Sheets

PDF
Arkusz danych · przepustnica z napędem pneumatycznym Seria BUW6-DSE · PL
Data sheet 446 KB Updated 13/06/2026

View Download

Slovenian / slovenščina

ZIP

Data Sheets

PDF
Podatkovni list · Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW6-DSE · SL
Data sheet 443 KB Updated 13/06/2026

View Download

Serbian (Latin) / srpski

ZIP

Data Sheets

PDF
Tehnički list · leptir ventil sa pneumatskim aktuatorom serije BUW6-DSE · SRLATIN
Data sheet 443 KB Updated 13/06/2026

View Download

BUW6-100-DSE-B-02 x 1.0 Pcs

Butterfly valve with bare shaft BUW6-100-DSE-B-02

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Special grease; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Flange PN10/16/ANSI150

PAS1405-B x 1.0 Pcs
