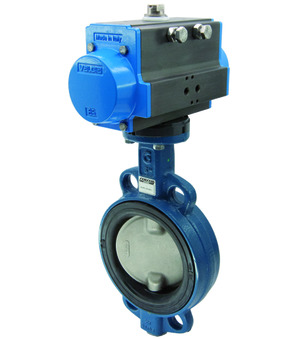

Name: Butterfly valve with pneumatic actuator BUW6-100-DSE-S22-08
SKU: BUW6-100-DSE-S22-08

BUW6-100-DSE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-100-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Flange PN10/16/ANSI150

PAS1155-R x 1.0 Pcs

Pneumatic actuator PAS1155-R

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90° Adjustable; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

MFFALFUAL09733 x 1.0 Pcs

MFFALFUAL09733

Adapter For butterfly valve DN40-DN150; F07/F07

VK2217 x 1.0 Pcs

Square adapter 22X17-22-Stahl

Square adapter Series VK; 22X17; Length 22mm; Material Stahl

VK1711 x 1.0 Pcs

Square adapter VK1711

Square adapter Series VK; 17X11; Length 16mm; Material Stahl

EP0S10 x 1.0 Pcs

EP0S10

Mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; Actuator PAS052-270

TH12-14-N-L27 x 1.0 Pcs

Extension TH12-14-N-L27

Extension Series TH12; Nickel plated brass; Cylindrical thread; Thread 1/4"

TH16C-14-N x 1.0 Pcs

Elbow adapter Male thread/Female thread TH16C-14-N

Elbow adapter Male thread/Female thread Series TH16C; Nickel plated brass; Conical thread; Thread 1/4"

TH38C-14-B-Z x 1.0 Pcs

Detachable hex nipple TH38C-14-B-Z

Detachable hex nipple Series TH38C; Brass; Conical thread; Metal sealing; Thread 1/4"; Thread 1/4"

FI03-14H x 1.0 Pcs

Filter FI03-14H

Filter Series Modul FI03; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Filter element 5µm; Connection 1/4"; Flow at 6bar/Δp=1bar 2100Nl/min
