BUW6-100-DSE-G

BUW6-100-DSE-G

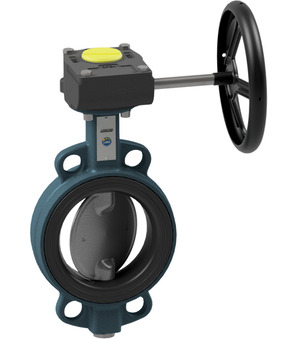

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 100mm; Length 52mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.074 Kg
Short Itemnumber: BUW6100DSEG
https://www.stasto.eu/web/image/product.template/109343/image_1920?unique=ac9b099

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 100mm; length 52mm

410,50 € 410.5 EUR 410,50 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
Brand STASTO

BUW6-100-DSE-G

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW6-100-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-100-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
GB02-07/11-01
GB02-07/11-01 x 1.0 Pcs
GB02-07/11-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 11mm
