BUW6-100-DSE-01K1-01

BUW6-100-DSE-01K1-01

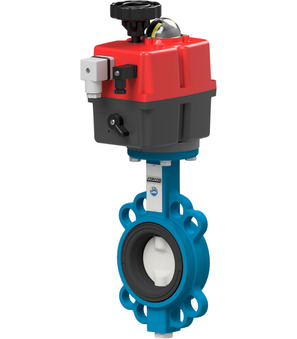

Butterfly valve with electrical actuator Series BUW6-DSE-01; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 140mm; Length 52mm; Operating time 34s; Voltage 24...240VAC/Dc

Intrastat No.: 84818085
Country of origin: Spain
Weight: 10.7 Kg
Short Itemnumber: BUW6100DSE01K101
https://www.stasto.eu/web/image/product.template/176737/image_1920?unique=ca83db0

butterfly valve with electrical actuator series BUW6-DSE-01; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 140mm; length 52mm; operating time 34s; voltage 24...240VAC/Dc

1.200,80 € 1200.8 EUR 1.200,80 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Voltage
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 100 mm
Length 52 mm
Voltage 24...240VDC/AC (50-60Hz)
All specifications (5)
Pressure range 0...16bar
DN 100 mm
Length 52 mm
Voltage 24...240VDC/AC (50-60Hz)
Operating time 34 s
BUW6-100-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW6-100-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
J4C140-0H34-Q17 x 1.0 Pcs
Electrical actuator J4C140-0H34-Q17
Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 140Nm; Operating time 34s; Flange ISO5211 F07/F10-star 17mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
