BUW6-080-DSN-D22-3C

Name: BUW6-080-DSN-D22-3C
Brand: STASTO
SKU: BUW6-080-DSN-D22-3C
Price: 486.5 EUR
Availability: InStock

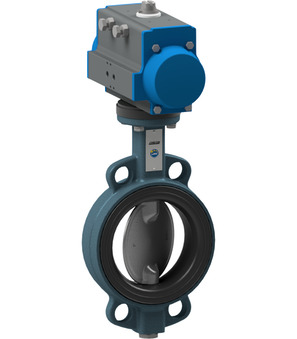

butterfly valve with pneumatic actuator series BUW-DSN-D-3C; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAD075; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW6080DSND223C

486,50 € 486.5 EUR 486,50 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-080-DSN-B-3C x 1.0

Butterfly valve with bare shaft BUW6-080-DSN-B-3C

butterfly valve with bare shaft series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+100°C; DN 80mm; length 46mm; pressure range 0...16bar; nominal flange pressure PN10/16/ANSI150; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

MFFALFUAL09733 x 1.0
