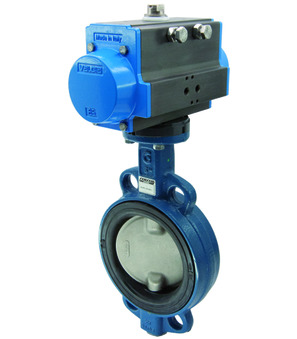

Butterfly valve with pneumatic actuator BUW6-080-DSE-D22-3C

Butterfly valve with pneumatic actuator BUW6-080-DSE-D22-3C

butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 80mm; length 46mm; actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 6.83 Kg
Short Itemnumber: BUW6080DSED223C
https://www.stasto.eu/web/image/product.template/178104/image_1920?unique=fcc32fd

butterfly valve with pneumatic actuator series BUW6-DSE-D2; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 80mm; length 46mm; actuator PAD075

486,50 € 486.5 EUR 486,50 €

Not Available For Sale

excl. tax
  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Medium temperature

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 80 mm
Length 46 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 80 mm
Length 46 mm

BUW6-080-DSE-D22-3C

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-080-DSE-B-3C x 1.0 Pcs
Butterfly valve with bare shaft BUW6-080-DSE-B-3C
Butterfly valve with bare shaft Series BUW6-DSE-B-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
