BUW6-080-DSD-D22

Name: BUW6-080-DSD-D22
Brand: STASTO
SKU: BUW6-080-DSD-D22
Price: 554.7 EUR
Availability: InStock

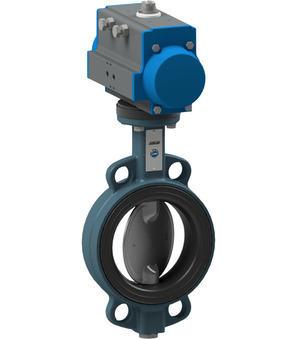

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAD075

Intrastat No.: 84818085
Country of origin: Italy
Weight: 6.93 Kg
Short Itemnumber: BUW6080DSDD22

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+60°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAD075

554,70 € 554.7 EUR 554,70 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-080-DSD-B x 1.0

Butterfly valve with bare shaft BUW6-080-DSD-B

Butterfly valve with bare shaft Series BUW6-DSD-B, BUW4-DSD-B; Wafer type; DVGW-gas-approved;Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 80mm; Length 46mm; Pressure range 0...16bar

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

MFFALFUAL09733 x 1.0
