BUW6-065-DSN-0K2

BUW6-065-DSN-0K2

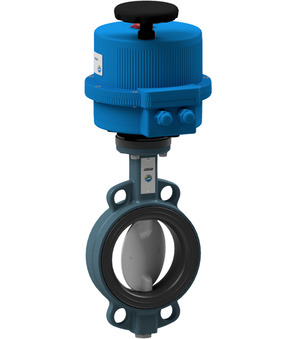

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Operating time 9s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.04 Kg
Short Itemnumber: BUW6065DSN0K2
https://www.stasto.eu/web/image/product.template/154966/image_1920?unique=24fee4a

butterfly valve with electrical actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 65mm; length 46mm; operating time 9s; voltage 24VAC/DC

757,00 € 757.0 EUR 757,00 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-065-DSN-B x 1.0
    Butterfly valve with bare shaft BUW6-065-DSN-B
    Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16/ANSI150
    Add to Cart
    Electrical actuator VB060-L
    VB060-L x 1.0
    Electrical actuator VB060-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
    Add to Cart
