BUW6-065-CSE-L
A-GE12L9/16UNF71X
A-GE12L9/16UNF71X
24,10 €
24,10 €
A-GR18/15L71X
A-GR18/15L71X
24,10 €
24,10 €

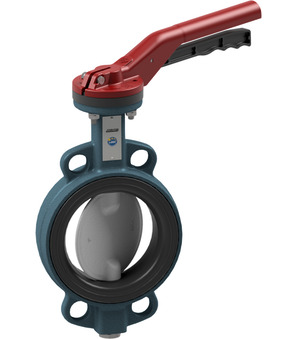

BUW6-065-CSE-L

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 65mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.05 Kg
Short Itemnumber:BUW6065CSEL
https://www.stasto.eu/web/image/product.template/149493/image_1920?unique=befcaa5

butterfly valve with hand lever; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 65mm; length 46mm

999.999,00 € 999999.0 EUR 999.999,00 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BUW6-065-CSE-B x 1.0
    BUW6-065-CSE-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 65mm; Length 46mm
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
