BUW6-050-DUE-G

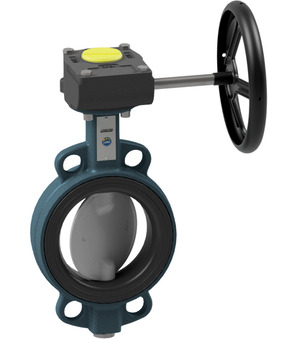

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm; Disc Zinc plated steel

Intrastat No.: 84818085
Country of origin: Netherlands
Weight: 5.524 Kg
Short Itemnumber:BUW6050DUEG

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; DN 50mm; length 43mm; disc zinc plated steel

274,90 € 274.9 EUR 274,90 €

This combination does not exist.

Availability:

In den Warenkorb

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW6050DUEG.stp

Download

BUW6-050-DUE-B x 1.0

Butterfly valve with bare shaft BUW6-050-DUE-B

Butterfly valve with bare shaft Series BUW6-DE-B, BUW1-DE-B, BUWC-DE-B, BUWZ-DE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Disc Stahl verzinkt; Pressure range 0…16bar; Flange PN10/16/ANSI150

Add to Cart
