BUW6-050-DSE-X-A

Name: BUW6-050-DSE-X-A
Brand: STASTO
SKU: BUW6-050-DSE-X-A
Price: 300.1 EUR
Availability: InStock

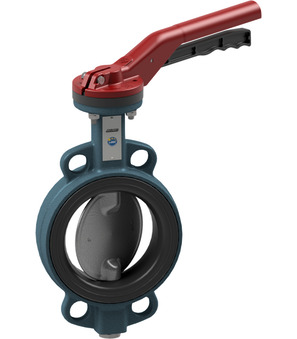

Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.6 Kg
Short Itemnumber: BUW6050DSEXA

300,10 € 300.1 EUR 300,10 €

DN
- 50 mm
Length
- 43 mm
Design
- ATEX
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	43 mm
design
Design	ATEX
pressure
Pressure range	0...16 bar

BUW6-050-DSE-B x 1.0

Butterfly valve with bare shaft BUW6-050-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
