BUW6-050-DSD-S22-A

Price.

558,70 €
STASTO Allgemeine Preisliste (EUR)
  1. Products
  2. BUW6-050-DSD-S22-A
BUW6-050-DSD-S22-A

BUW6-050-DSD-S22-A

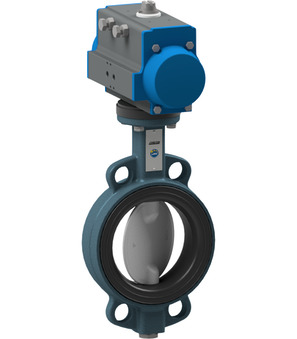

Butterfly valve with pneumatic actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10…+60°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAS0855; ATEX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.75 Kg
Short Itemnumber:BUW6050DSDS22A
https://www.stasto.eu/web/image/product.template/131187/image_1920?unique=c096d6d

butterfly valve with pneumatic actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10…+60°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAS0855; ATEX

558,70 € 558.7 EUR 558,70 €

price on request

  • Design

This combination does not exist.

Availability:
Contact Us
Design ATEX
BUW6-050-DSD-B-A x 1.0
Butterfly valve with bare shaft BUW6-050-DSD-B-A
Butterfly valve with bare shaft Series BUW6-DSD-B-A, BUW4-DSD-B-A; ATEX II 2 G/D Ex h X; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 50mm; Length 43mm; Pressure range 0...16bar
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
