STASTO Allgemeine Preisliste (EUR)
  1. Products
  2. BUW6-040-SSWS-0G2
BUW6-040-SSWS-0G2

BUW6-040-SSWS-0G2

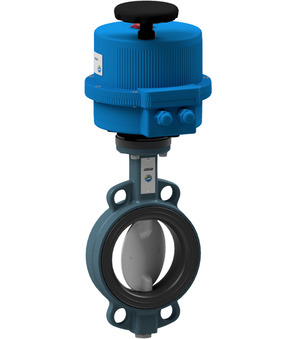

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1 R20; Body 1.4408; Disc 1.4408; Shaft 1.4401; Liner EPDM-white; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 40mm; Length 33mm; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.47 Kg
Short Itemnumber: BUW6040SSWS0G2
https://www.stasto.eu/web/image/product.template/125921/image_1920?unique=f96ddcc

butterfly valve with electrical actuator; wafer type; length according to EN558−1 R20; body AISI 316; disc AISI 316; shaft AISI 316; liner EPDM-white; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 40mm; length 33mm; operating time 9s; voltage 100-240VAC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-040-SSWS-B x 1.0
    BUW6-040-SSWS-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body 1.4408; Disc 1.4408; Shaft 1.4401; Liner EPDM-white; Nominal flange pressure PN10/16/ANSI150; Medium temperature -30...+130°C; Pressure range 0...16bar; DN 40mm; Length 33mm
    Add to Cart
    Electrical actuator VB060-H
    VB060-H x 1.0
    Electrical actuator VB060-H
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
    Add to Cart
