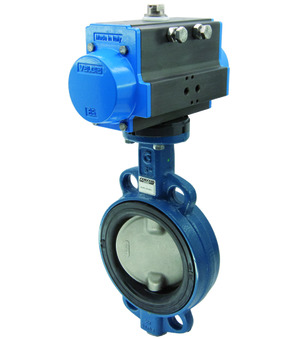

Butterfly valve with pneumatic actuator BUW6-040-DSE-S22-S

Butterfly valve with pneumatic actuator BUW6-040-DSE-S22-S

Butterfly valve with pneumatic actuator Series BUW6-DSE-S2-S; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; Silicone-free; DN 40mm; Length 33mm; Actuator PAS0855; Pressure range 0...10bar

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 7.15 Kg
Short Itemnumber: BUW6040DSES22S
https://www.stasto.eu/web/image/product.template/134478/image_1920?unique=50207e5

butterfly valve with pneumatic actuator series BUW6-DSE-S2-S; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; silicone-free; DN 40mm; length 33mm; actuator PAS0855; pressure range 0...10bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Medium temperature

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 40 mm
Length 33 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 40 mm
Length 33 mm

BUW6-040-DSE-S22-S

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BUW6-040-DSE-B-S x 1.0 Pcs
Butterfly valve with bare shaft BUW6-040-DSE-B-S
Butterfly valve with bare shaft Series BUW6-DSE-B-S; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Silicone-free; DN 40mm; Length 33mm
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
MFFALFUAL09733 x 1.0 Pcs
MFFALFUAL09733
Adapter For butterfly valve DN40-DN150; F07/F07
