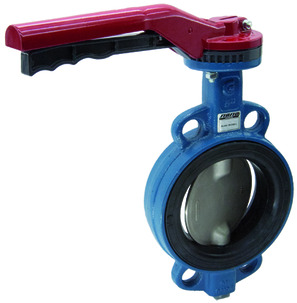

Butterfly valve with hand lever BUW6-040-DSE-L-S

Butterfly valve with hand lever BUW6-040-DSE-L-S

Butterfly valve with hand lever Series BUW6-DSE-L-S; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Silicone-free; DN 40mm; Length 33mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 2.55 Kg
Short Itemnumber: BUW6040DSELS

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.eu/web/image/product.template/134459/image_1920?unique=38f74c7

butterfly valve with hand lever series BUW6-DSE-L-S; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...16bar; silicone-free; DN 40mm; length 33mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 40 mm
Length 33 mm
Pressure range 0...16bar
DN 40 mm
Length 33 mm
BUW6-040-DSE-B-S x 1.0 Pcs
Butterfly valve with bare shaft BUW6-040-DSE-B-S
Butterfly valve with bare shaft Series BUW6-DSE-B-S; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Silicone-free; DN 40mm; Length 33mm
HLBU-040100-A
HLBU-040100-A x 1.0 Pcs
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
