BUW4-400-CSTS-G
C-TEE14SM20X1,5
C-TEE14SM20X1,5
price on request
A-WAS15ZL71
A-WAS15ZL71
price on request

BUW4-400-CSTS-G

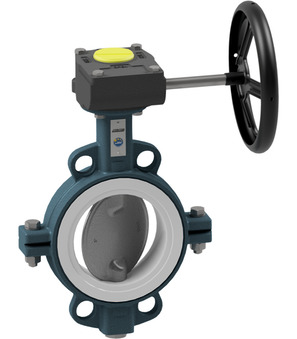

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 400mm; Length 102mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber:BUW4400CSTSG
https://www.stasto.eu/web/image/product.template/184307/image_1920?unique=b049dee

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 400mm; length 102mm

999.999,00 € 999999.0 EUR 999.999,00 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BUW4-400-CSTS-B x 1.0
    BUW4-400-CSTS-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 400mm; Length 102mm
    Add to Cart
    GB02-12/4012-01
    GB02-12/4012-01 x 1.0
    GB02-12/4012-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F12; Diameter/Key 40/12mm
