Butterfly valve with manual gear box Series BUW4-DSTS-G Store

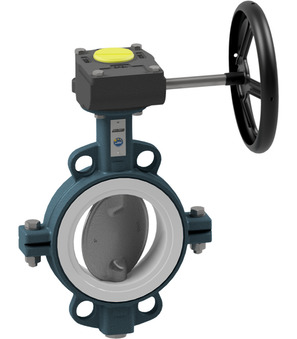

Butterfly valve with manual gear box BUW4-250-DSTS-G

Butterfly valve with manual gear box BUW4-250-DSTS-G

Butterfly valve with manual gear box Series BUW4-DSTS-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 250mm; Length 68mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 32.478 Kg
Short Itemnumber: BUW4250DSTSG

Butterfly valve with manual gear box Series BUW4-DSTS-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 250mm; Length 68mm

2.968,40 € 2968.4 EUR 2.968,40 €

DN
- 250 mm
Length
- 68 mm
Pressure range
- 0...10 bar

This combination does not exist.

Availability:

dimension
DN	250 mm
Length	68 mm
pressure
Pressure range	0...10 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

Assembly and Operating Instructions

2

Assembly instruction_Butterfly valve with manual gear box Series BUW4-DSTS-G_EN.pdf

Data sheet_Butterfly valve with manual gear box Series BUW4-DSTS-G_EN.pdf

CAD / 3D

1

CADSTEP_BUW4250DSTSG.stp

Datové listy

1

Datový list_uzavírací klapka s ruční převodovkou série BUW4-DSTS-G_CS.pdf

Montážní a provozní návody

1

Montážní předpis_uzavírací klapka s ruční převodovkou série BUW4-DSTS-G_CS.pdf

Data Sheets

1

Datablad_Spjældventil med håndgear Serie BUW4-DSTS-G_DA_DK.pdf

Datenblätter

1

Datenblatt_Absperrklappe mit Handgetriebe Serie BUW4-DSTS-G_DE.pdf

Montage- und Betriebsanleitungen

1

Montageanleitung_Absperrklappe mit Handgetriebe Serie BUW4-DSTS-G_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Βαλβίδα πεταλούδας απομόνωσης με χειροκίνητο μειωτήρα ταχυτήτων Σειρά BUW4-DSTS-G_EL_GR.pdf

Assembly and Operating Instructions

1

Ficha técnica_Válvula de mariposa con reductor manual Serie BUW4-DSTS-G_ES.pdf

Data Sheets

1

Tietolehti_Sulkuventtiili käsivaihteella Sarja BUW4-DSTS-G_FI.pdf

Data Sheets

1

Fiche technique_Vanne papillon avec réducteur manuel Série BUW4-DSTS-G_FR.pdf

Data Sheets

1

Podatkovni list_Zaporni leptir ventil s ručnim reduktorom Serija BUW4-DSTS-G_HR.pdf

Adatlapok

1

Adatlap_pillangószelep kézi forgatókerékkel sorozat BUW4-DSTS-G_HU.pdf

Szerelési és kezelési útmutatók

1

Üzembehelyezési útmutató_pillangószelep kézi forgatókerékkel sorozat BUW4-DSTS-G_HU.pdf

Assembly and Operating Instructions

1

Scheda tecnica_Serranda di intercettazione con riduttore manuale Serie BUW4-DSTS-G_IT.pdf

Data Sheets

1

Datablad_Avstengningsspjeldventil med håndgir Serie BUW4-DSTS-G_NB_NO.pdf

Data Sheets

1

Datasheet_Vlinderklep met handbediening Serie BUW4-DSTS-G_NL.pdf

Karty katalogowe

1

Arkusz danych_przepustnica z przekładnią Seria BUW4-DSTS-G_PL.pdf

Instrukcje montażu i obsługi

1

Instrukcja montażu_przepustnica z przekładnią Seria BUW4-DSTS-G_PL.pdf

Assembly and Operating Instructions

1

Fișă de date_Supapă fluture cu cutie de viteze manuală serie BUW4-DSTS-G_RO.pdf

Podatkovni listi

1

Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BUW4-DSTS-G_SL.pdf

Navodila za montažo in uporabo

1

Navodila za montažo_Zaporna loputa z ročnim polžastim pogonom serija BUW4-DSTS-G_SL.pdf

Data Sheets

1

Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BUW4-DSTS-G_SRLATIN.pdf

Assembly and Operating Instructions

1

Uputstvo za montažu_leptir ventil sa ručnom menjačkom kutijom serije BUW4-DSTS-G_SRLATIN.pdf

Data Sheets

1

Datablad_Spjällventil med handväxel Serie BUW4-DSTS-G_SV.pdf

BUW4-250-DSTS-B x 1.0

BUW4-250-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 250mm; Length 68mm

GB02-10/22-02

GB02-10/22-02 x 1.0

GB02-10/22-02

Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm

Hexagon head screw SW002-M10X30-I

SW002-M10X30-I x 4.0

Hexagon head screw SW002-M10X30-I

Hexagon head screw Series SW002-I; 1.4301; According to ISO4017; Thread M10X30

Spring washer SWA004-M10-I

SWA004-M10-I x 4.0

Spring washer SWA004-M10-I

Spring washer Series SWA004-I; 1.4301; According to DIN127; Thread M10
