  6. BUW4-150-DSTS-D22-ABS54-C001-03-C002-31-6-EB0X13

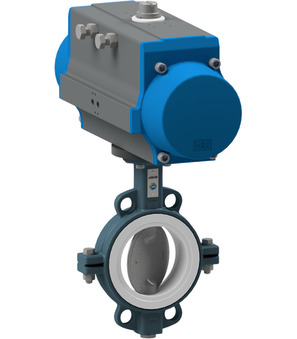

BUW4-150-DSTS-D22-ABS54-C001-03-C002-31-6-EB0X13

BUW4-150-DSTS-D22-ABS54-C001-03-C002-31-6-EB0X13

BUW4-150-DSTS-D22
butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAD100
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X13
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 10-30VDC/200mA; switch type P&F NBN3-F25F-E8P; function NO contact PNP; material of case plastic

Intrastat No.: 84818085
Country of origin: Italy
Weight: 17.038 Kg
Short Itemnumber: BUW4150DSTSD22ABS54C00103C002316EB0X13
https://www.stasto.eu/web/image/product.template/218277/image_1920?unique=24fee4a

BUW4-150-DSTS-D22
butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAD100
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X13
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 10-30VDC/200mA; switch type P&F NBN3-F25F-E8P; function NO contact PNP; material of case plastic

1.955,00 € 1955.0 EUR 1.955,00 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
DN 150 mm
Length 56 mm
function
Function NO PNP
Designs
Connector size 22
Switch type P&F NBN3-F25F-E8
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
Switching capacity 10...30VDC/200mA
materials
Material of case Plastic
characteristics
Coil C001
Actuator PAD?
Actuator 2 PAS
