  6. BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6
BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6

BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6

BUW4-100-DSTS-D22

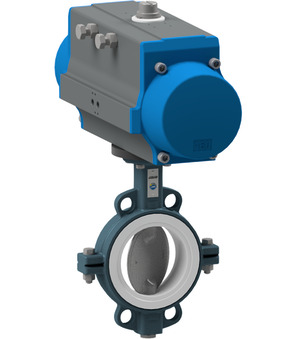

butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD100
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.91 Kg
Short Itemnumber: BUW4100DSTSD22ABS54C00103C002316
https://www.stasto.eu/web/image/product.template/237632/image_1920?unique=24fee4a

BUW4-100-DSTS-D22
butterfly valve with pneumatic actuator series BUW4-DSTS-D22; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 100mm; length 52mm; actuator PAD100
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

1.449,30 € 1449.3 EUR 1.449,30 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Valve interface Namur 1/4"
DN 100 mm
Length 52 mm
Designs
Connector size 22
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
characteristics
Coil C001
Actuator PAD100
Actuator 2 PAS
