BUW4-080-DZTS-S22

Name: BUW4-080-DZTS-S22
SKU: BUW4-080-DZTS-S22
Price: 1772.5 EUR
Availability: InStock

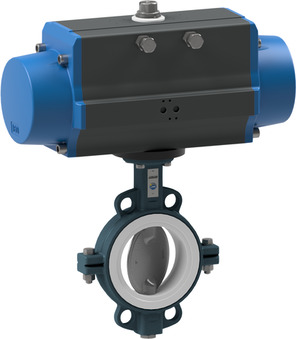

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1255

Intrastat No.: 84818085
Country of origin: Italy

Weight: 18.66 Kg
Short Itemnumber: BUW4080DZTSS22

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 630 PTFE-coated; shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1255

1.772,50 € 1772.5 EUR 1.772,50 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar

Spezifikationen
Spare Parts

Pressure range

0...10bar

BUW4-080-DZTS-B x 1.0 Pcs

Butterfly valve with bare shaft BUW4-080-DZTS-B

Butterfly valve with bare shaft Series BUW4-DZTS-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm
