BUW2-250-DSE-S31

Name: BUW2-250-DSE-S31
SKU: BUW2-250-DSE-S31
Price: 2308.7 EUR
Availability: InStock

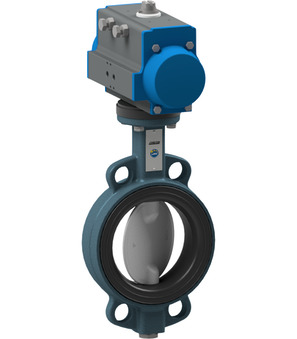

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Water 0-6bar; DN 250mm; Length 68mm; Pressure range 0-6bar; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy
Weight: 52.1 Kg
Short Itemnumber: BUW2250DSES31

2.308,70 € 2308.7 EUR 2.308,70 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0-6bar

Spezifikationen
Spare Parts

Pressure range

0-6bar

BUW2-250-DSE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW2-250-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0…10bar; Nominal flange pressure PN10/16/ANSI150

PAS1605 x 1.0 Pcs

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

APKTGB0052 x 1.0 Pcs
