BUW2-080-DSE-S32

Name: BUW2-080-DSE-S32
SKU: BUW2-080-DSE-S32
Price: 503.9 EUR
Availability: InStock

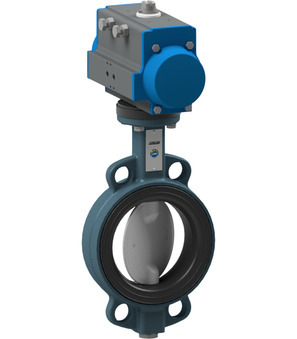

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 80mm; Length 46mm; Actuator PAS0755

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.24 Kg
Short Itemnumber: BUW2080DSES32

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...6bar; DN 80mm; length 46mm; actuator PAS0755

503,90 € 503.9 EUR 503,90 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...6bar

Spezifikationen
Spare Parts

Pressure range

0...6bar

BUW2-080-DSE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW2-080-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…10bar; Flange PN10/16/ANSI150
