BUW2-080-DSC-S32-A

Name: BUW2-080-DSC-S32-A
Brand: STASTO
SKU: BUW2-080-DSC-S32-A
Price: 553.5 EUR
Availability: InStock

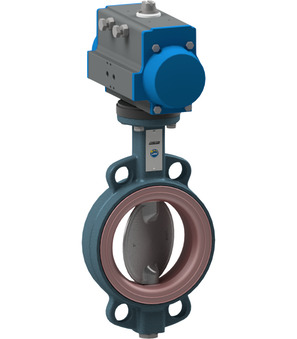

Butterfly valve with pneumatic actuator; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 80mm; Length 46mm; Actuator PAS0755

Intrastat No.: 84818085
Country of origin: Italy
Weight: 7.54 Kg
Short Itemnumber: BUW2080DSCS32A

butterfly valve with pneumatic actuator; ATEX Ex II 2GD c TX; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 80mm; length 46mm; actuator PAS0755

553,50 € 553.5 EUR 553,50 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW2-080-DSC-B-A x 1.0

BUW2-080-DSC-B-A

Butterfly valve with bare shaft; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 80mm; Length 46mm

Add to Cart

PAS0755 x 1.0

Pneumatic actuator PAS0755

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm

Add to Cart

MFFALFUAL09733 x 1.0
