BUW2-065-DSE-D31

Name: BUW2-065-DSE-D31
SKU: BUW2-065-DSE-D31
Price: 392.9 EUR
Availability: InStock

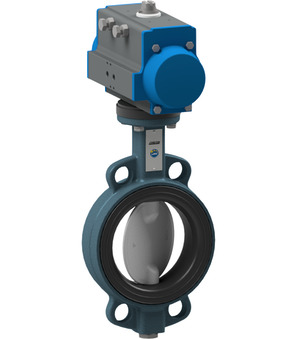

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Water 0-6bar; DN 65mm; Length 46mm; Pressure range 0-6bar; Actuator PAD063

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.5 Kg
Short Itemnumber: BUW2065DSED31

392,90 € 392.9 EUR 392,90 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0-6bar

Documents

Data sheets, drawings and CAD files

Pressure range

0-6bar

BUW2-065-DSE-D31

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · BUW2065DSED31
CAD-STEP 14,2 MB Updated 27/09/2026

Download

BUW6-065-DSE-B x 1.0 Pcs

Butterfly valve with bare shaft BUW6-065-DSE-B

Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 65mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
