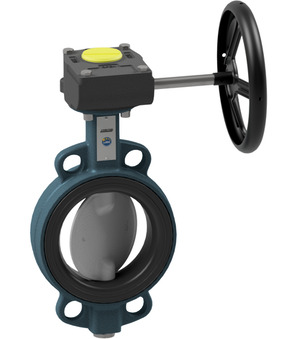

BUW1-500-DSN-G

BUW1-500-DSN-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4401; Shaft 1.4016; Liner NBR; Nominal flange pressure PN6; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 500mm; Length 127mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 154.72 Kg
Short Itemnumber: BUW1500DSNG
https://www.stasto.eu/web/image/product.template/142918/image_1920?unique=f96ddcc

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN6; medium temperature -10...+100°C; pressure range 0...6bar; DN 500mm; length 127mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW1-500-DSN-B x 1.0
    Butterfly valve with bare shaft BUW1-500-DSN-B
    Butterfly valve with bare shaft Series BUW1-DSN-B, BUW6-DSN-B, BUW-2-DSN, BUWV-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 500mm; Length 127mm; Pressure range 0…6bar; Flange PN6
    Add to Cart
    GB02-16/4512-01
    GB02-16/4512-01 x 1.0
    GB02-16/4512-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F16; Diameter/Key 45/12mm
