BULZ-600-CSEK-G

BULZ-600-CSEK-G

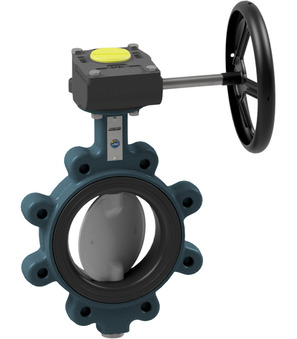

Butterfly valve with manual gear box Series BULZ-CSEK-G; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0...10bar; Nominal flange pressure PN16

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULZ600CSEKG
https://www.stasto.eu/web/image/product.template/240666/image_1920?unique=a24ddfa

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 700mm; length 165mm

18.536,20 € 18536.2 EUR 18.536,20 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULZ-600-CSEK-B x 1.0
    BULZ-600-CSEK-B
    Butterfly valve with bare shaft Series BULZ-CSEK-B; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0...10bar; Nominal flange pressure PN16
    Add to Cart
    GB02-16/6018-01
    GB02-16/6018-01 x 1.0
    GB02-16/6018-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 3250Nm; Flange ISO5211 F16; Diameter/Key 60/18mm
