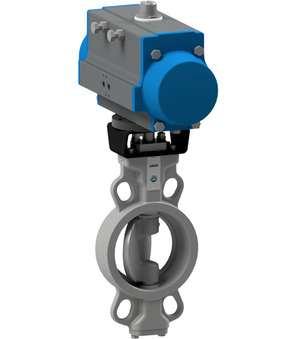

Butterfly valve with pneumatic actuator Series BULV-S Store

BULV-100-CSIS-S42

Name: BULV-100-CSIS-S42
Brand: STASTO
SKU: BULV-100-CSIS-S42
Price: 3115.7 EUR
Availability: InStock

Butterfly valve with pneumatic actuator; Lug type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 100mm; Length 52mm; Pressure range 0...25bar; Nominal flange pressure PN25; Actuator PAS1605-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.17 Kg
Short Itemnumber: BULV100CSISS42

butterfly valve with pneumatic actuator; lug type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 100mm; length 52mm; pressure range 0...25bar; nominal flange pressure PN25; actuator PAS1605-H

3.115,70 € 3115.7 EUR 3.115,70 €

DN
- 100 mm
Length
- 52 mm
Flange
- PN25
Pressure range
- 0...25 bar
Actuator
- PAS1605-H

This combination does not exist.

Availability:

Add to cart

dimension
DN	100 mm
Length	52 mm
Flange	PN25
pressure
Pressure range	0...25 bar
characteristics
Actuator	PAS1605-H

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BULV100CSISS42.stp

Download

BULV-100-CSIS-B x 1.0

BULV-100-CSIS-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 100mm; Length 52mm; Nominal flange pressure PN25

Add to Cart

PAS1605-H x 1.0

Pneumatic actuator PAS1605-H

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0051 x 1.0
