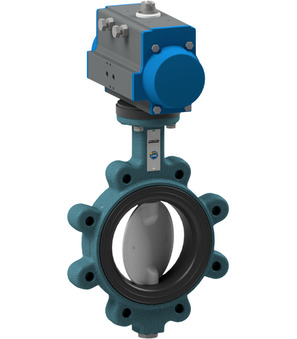

Butterfly valve with pneumatic actuator BULI-100-DSC-S32

Name: Butterfly valve with pneumatic actuator BULI-100-DSC-S32
Brand: STASTO
SKU: BULI-100-DSC-S32
Price: 661.1 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BULI-S, BULB-S; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 100mm; Length 52mm; Flange PN10/16; Actuator PAS0855

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.05 Kg
Short Itemnumber: BULI100DSCS32

butterfly valve with pneumatic actuator series BULI-S, BULB-S; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 100mm; length 52mm; flange PN10/16; actuator PAS0855

661,10 € 661.1 EUR 661,10 €

DN
- 100 mm
Length
- 52 mm
Flange
- PN10/16
Actuator
- PAS0855

This combination does not exist.

Availability:

Add to cart

dimension
DN	100 mm
Length	52 mm
Flange	PN10/16
characteristics
Actuator	PAS0855

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BULI100DSCS32.stp

Download

BULI-100-DSC-B x 1.0

Butterfly valve with bare shaft BULI-100-DSC-B

Butterfly valve with bare shaft Series BULI-B; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Medium temperature -10...+100°C; Pressure range 0...6bar; Nominal flange pressure PN10/16; DN 100mm; Length 52mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

MFFALFUAL09733 x 1.0
