BULG-150-DSV-S12

Name: BULG-150-DSV-S12
Brand: STASTO
SKU: BULG-150-DSV-S12
Price: 2266.7 EUR
Availability: InStock

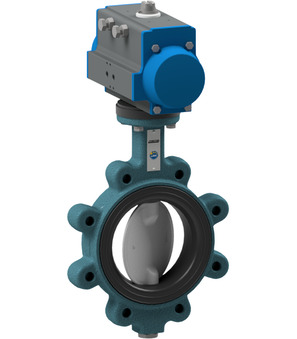

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Flange PN10/16; Actuator PAS1605

Intrastat No.: 84818085
Country of origin: Italy
Weight: 41.67 Kg
Short Itemnumber: BULG150DSVS12

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...16bar; DN 150mm; length 56mm; flange PN10/16; actuator PAS1605

2.266,70 € 2266.7 EUR 2.266,70 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULG-150-DSV-B x 1.0

Butterfly valve with bare shaft BULG-150-DSV-B

Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure PN10/16

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

APKTGB0051 x 1.0
