Butterfly valve with hand lever Series BULG-L, BULC-L, BULY-L Store

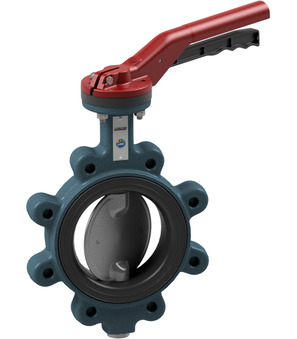

Butterfly valve with hand lever BULG-125-DSV-L

Name: Butterfly valve with hand lever BULG-125-DSV-L
Brand: STASTO
SKU: BULG-125-DSV-L
Price: 583.2 EUR
Availability: InStock

Butterfly valve with hand lever Series BULG-L, BULC-L, BULY-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.0 Kg
Short Itemnumber: BULG125DSVL

butterfly valve with hand lever series BULG-L, BULC-L, BULY-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 125mm; length 56mm; pressure range 0...16bar; flange PN10/16

583,20 € 583.2 EUR 583,20 €

DN
- 125 mm
Length
- 56 mm
Flange
- PN10/16
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	125 mm
Length	56 mm
Flange	PN10/16
pressure
Pressure range	0...16 bar

BULG-125-DSV-B x 1.0

Butterfly valve with bare shaft BULG-125-DSV-B

Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure 10/16

Add to Cart
