STASTO Allgemeine Preisliste (EUR)
Other materiales - A05 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Other materiales - A05
  6. BULG-125-DSD-D22

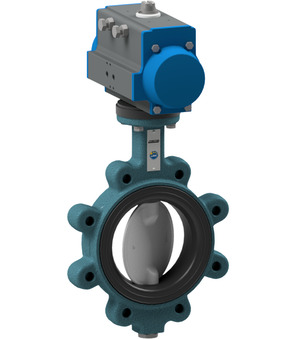

BULG-125-DSD-D22

BULG-125-DSD-D22

Butterfly valve with pneumatic actuator; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.74 Kg
Short Itemnumber: BULG125DSDD22
https://www.stasto.eu/web/image/product.template/142999/image_1920?unique=24fee4a

butterfly valve with pneumatic actuator; lug type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 125mm; length 56mm; flange PN10/16; actuator PAD085

711,10 € 711.1 EUR 711,10 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULG-125-DSD-B x 1.0
    Butterfly valve with bare shaft BULG-125-DSD-B
    Butterfly valve with bare shaft Series BULG-B-DVGW, BULC-B-DVGW; Lug type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure PN10/16
    Add to Cart
    Pneumatic actuator PAD085
    PAD085 x 1.0
    Pneumatic actuator PAD085
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
    Add to Cart
