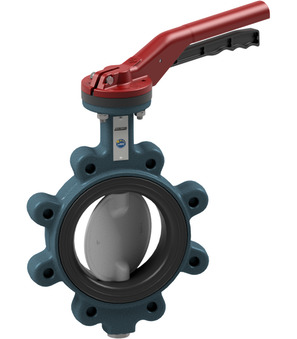

BULG-100-DSE-L-3C

Butterfly valve with bare shaft Series BUL-B-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
