Butterfly valve with hand lever Series BULA-DSNS-L, BULG-DSNS-L, BULC-DSNS-L, BULY-DSNS-L Store

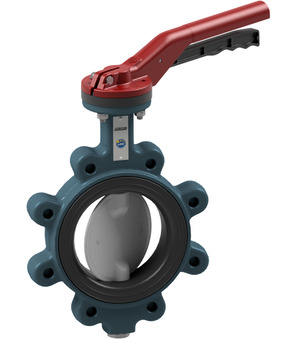

Butterfly valve with hand lever BULG-065-DSNS-L

Name: Butterfly valve with hand lever BULG-065-DSNS-L
Brand: STASTO
SKU: BULG-065-DSNS-L
Price: 189.6 EUR
Availability: InStock

Butterfly valve with hand lever Series BULA-DSNS-L, BULG-DSNS-L, BULC-DSNS-L, BULY-DSNS-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.65 Kg
Short Itemnumber: BULG065DSNSL

butterfly valve with hand lever series BULA-DSNS-L, BULG-DSNS-L, BULC-DSNS-L, BULY-DSNS-L; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 316; liner NBR; medium temperature -10...+100°C; DN 65mm; length 46mm; pressure range 0...16bar; flange PN10/16

189,60 € 189.6 EUR 189,60 €

DN
- 65 mm
Length
- 46 mm
Flange
- PN10/16
Pressure range
- 0...16 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	65 mm
Length	46 mm
Flange	PN10/16
pressure
Pressure range	0...16 bar

BULG-065-DSNS-B x 1.0

Butterfly valve with bare shaft BULG-065-DSNS-B

Butterfly valve with bare shaft Series BULA-DSNS-B, BULG-DSNS-B, BULC-DSNS-B, BULY-DSNS-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16
