BULG-050-DSV-S22

Name: BULG-050-DSV-S22
Brand: STASTO
SKU: BULG-050-DSV-S22
Price: 617.7 EUR
Availability: InStock

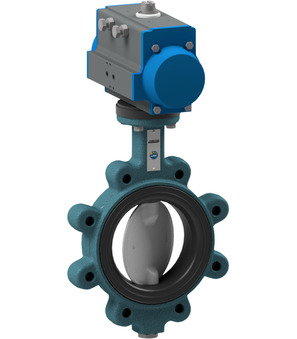

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Nominal flange pressure 10/16bar; Actuator PAS0855

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.65 Kg
Short Itemnumber: BULG050DSVS22

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 50mm; length 43mm; nominal flange pressure 10/16bar; actuator PAS0855

617,70 € 617.7 EUR 617,70 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULG-050-DSV-B x 1.0

Butterfly valve with bare shaft BULG-050-DSV-B

Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 50mm; Length 43mm; Pressure range 0...16bar; Nominal flange pressure 10/16

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

MFFALFUAL09733 x 1.0
