Butterfly valve with pneumatic actuator Series BULG-DSE-T22, BULC-DSE-T22 Store

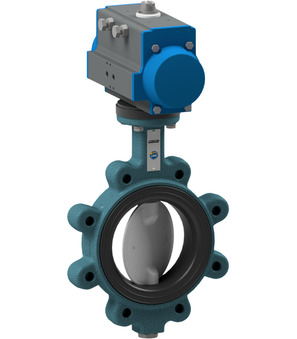

Butterfly valve with pneumatic actuator BULC-300-DSE-T22

Name: Butterfly valve with pneumatic actuator BULC-300-DSE-T22
Brand: STASTO
SKU: BULC-300-DSE-T22
Price: 5482.7 EUR
Availability: InStock

Butterfly valve with pneumatic actuator Series BULG-DSE-T22, BULC-DSE-T22; NO; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Flange PN10; Actuator PAS2305

Intrastat No.: 84818085
Country of origin: Italy
Weight: 118.18 Kg
Short Itemnumber: BULC300DSET22

butterfly valve with pneumatic actuator series BULG-DSE-T22, BULC-DSE-T22; NO; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 300mm; length 78mm; flange PN10; actuator PAS2305

5.482,70 € 5482.7 EUR 5.482,70 €

DN
- 300 mm
Length
- 78 mm
Flange
- PN10
Actuator
- PAS2305

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	300 mm
Length	78 mm
Flange	PN10
characteristics
Actuator	PAS2305

BULC-300-DSE-B x 1.0

Butterfly valve with bare shaft BULC-300-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10

Add to Cart

PAS2305 x 1.0

Pneumatic actuator PAS2305

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 230mm; Flange ISO5211 F16; Female square 46mm; Torque at 5,5bar 661Nm

Add to Cart

APKTGB0014 x 1.0
