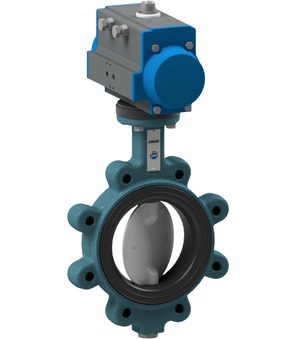

Butterfly valve with pneumatic actuator BULC-200-SSES-S22-A3C

Name: Butterfly valve with pneumatic actuator BULC-200-SSES-S22-A3C
Brand: STASTO
SKU: BULC-200-SSES-S22-A3C
Price: 4431.0 EUR
Availability: InStock

butterfly valve with pneumatic actuator series BULC-SSES-S22-A, BULY-DSE-S22-A; ATEX II 2 G/D Ex h X; lug type; length according to EN558−1R20; housing, disc and shaft AISI 316; liner EPDM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0…10bar; flange PN10; actuator PAS2005

Intrastat No.: 84818085
Country of origin: Italy

Short Itemnumber: BULC200SSESS22A3C

4.431,00 € 4431.0 EUR 4.431,00 €

excl. tax

DN
- 200 mm
Length
- 60 mm
Flange
- PN10
Design
- ATEX
Pressure range
- 0...10 bar
Actuator
- PAS2005
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10 bar
DN	200 mm
Length	60 mm
Flange	PN10

All specifications (6)

Spezifikationen
Spare Parts

Pressure range	0...10 bar
DN	200 mm
Length	60 mm
Flange	PN10
Design	ATEX
Brand	STASTO

BULC-200-SSES-B-A3C x 1.0 Pcs

BULC-200-SSES-B-A3C

butterfly valve with bare shaft; lug type; ATEX Ex II 2GD c TX; length according to EN558−1 R20; housing; disc and shaft AISI 316; liner EPDM; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

PAS2005 x 1.0 Pcs

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

APKT001000 x 1.0 Pcs
